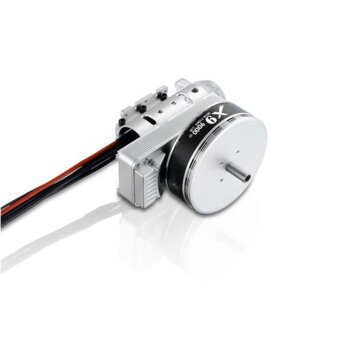

Xrotor Pro X9 brushless motor
- [14.4. 2025]Zmazať/ Upraviť/ Topovať




Predávame Xrotor Pro X9 brushless motor v novom stave. Všetky technické špecifikácie nájdete na vyššie uvedených fotografiách. K dispozícii je 8 kusov. p/n
30410030023 / 30410030024
Max Thrust 19.2kg/Axis (46V, Sea Level )
Recommended LiPo Battery 12S LiPo
Recommended Takeoff Weight 7-9.5kg/Axis (46V, Sea Level )
Product Weight (ESC/Motor/Prop) 1400g
Waterproof Rating
IPX7
Operating Temperature -20-55℃
Motor
Stator size 96*16mm
KV Rating 110KV
O.D of Carbon Fiber Tube φ40
Bearing Imported Waterproof Bearing
ESC
Recommended LiPo Battery 6-12S LiPo
PWM Input Signal Level 3.3V/5V (Compatible )
Throttle Signal Frequency 50-500Hz
Operating Pulse Width 1100-1940 μs (Fixed or cannot be Programmed )
Max. Input Voltage 52.2V
Max. Input Current (Cont.) 120 A (w/ Good Heat Dissipation )
Max. Peak Current (10s) 150 A (w/ Good Heat Dissipation )
BEC No
Nozzle Mounting Holes φ28.4mm-2*M3
Recommended Propeller
Diameter×Pitch 34.7×11 inch
Weight
30410030023 / 30410030024
Max Thrust 19.2kg/Axis (46V, Sea Level )
Recommended LiPo Battery 12S LiPo
Recommended Takeoff Weight 7-9.5kg/Axis (46V, Sea Level )
Product Weight (ESC/Motor/Prop) 1400g
Waterproof Rating
IPX7
Operating Temperature -20-55℃
Motor
Stator size 96*16mm
KV Rating 110KV
O.D of Carbon Fiber Tube φ40
Bearing Imported Waterproof Bearing
ESC
Recommended LiPo Battery 6-12S LiPo
PWM Input Signal Level 3.3V/5V (Compatible )
Throttle Signal Frequency 50-500Hz
Operating Pulse Width 1100-1940 μs (Fixed or cannot be Programmed )
Max. Input Voltage 52.2V
Max. Input Current (Cont.) 120 A (w/ Good Heat Dissipation )
Max. Peak Current (10s) 150 A (w/ Good Heat Dissipation )
BEC No
Nozzle Mounting Holes φ28.4mm-2*M3
Recommended Propeller
Diameter×Pitch 34.7×11 inch
Weight
|
|
